Quick Details

  • Material: casting iron
  • Technics: Casting
  • Type: Union
  • Place of Origin: Guangdong, China (Mainland)
  • Model Number: JF3001high pressure rotary joint
  • Brand Name: HONG CHANG JUFA
  • Connection: Flange
  • Shape: round
  • Head Code: round
  • Product name: high pressure rotary joint
  • medium: oil, steam or hot water
  • max temperature: 350℃
  • business type: manufacturer
  • max speed: 600RPM
  • max pressure: 25BAR/375PSI
  • Certification: ISO9001
  • connection ways: flange/thread(right or left hand)
  • Customize: available
  • options: single flow or duoflow

Packaging & Delivery

Packaging Details Wooden box, standard export packing, according to customer's request for high pressure rotary joint
Delivery Time Shipped in 2 days after payment

 Hydraulic/heat transfer rotating water coupling high temperature high pressure rotary joint









Operating Condition





size3/4"to 3"
max temperature350℃
max speed600rpm
max pressure2.5mpa
mediumsteam/hot oil
material

ductile cast iron/copper seal









  What is the distinguished features of our rotary joint?



1.Hosing made of ductile cast iron and cover&rotor made of stainless steel



2.Have high temperature resistant spring



3.Ideal for thermal oil and for considerably higher pressures, temperatures and speeds



4. Hot oil circulation rotary joint. High speed,high temperature and high pressure



5 The application of spherical ring and guiding ring guarantee the concentricity of rotor.



6 Easy repair and low cost maintenance.

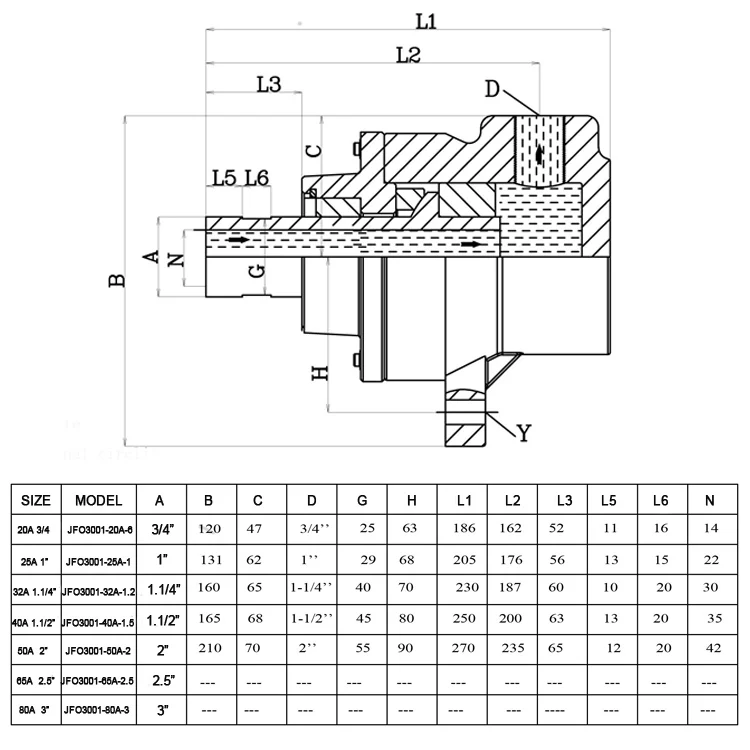

 Specification















 Hydraulic/heat transfer rotating water coupling high temperature high pressure rotary joint







FAQ





Q1: What is the Warranty for the rotary joint?

A1: For the rotary joint, we have 1 year warranty. We replace the assemble for you for free.



Q2: What is the delivery time

A2: For the rotary joint, we have many size available in stock. Delivery time could be 3 to 7 days if normal size



Q3: Could you provide custom size product for us?

A3: We welcome custom size and can arrange the production according to your drawing or request.



Q4: What kind of media that your rotary joint can used for?

A4: We have different kinds of rotary joints for water, hot oil, steam and air.



Q5: What kind of seal you use for to guarantee the good sealing performance?

A5: We use graphite seal, mechanical seal and spherical seal with good sealing performance.



Q6: Can we only buy some assemble of the rotary joint?

A6: Yes, we can provide you with the seal, spring or other assemble.



Q7:Is there cheap shipping cost to import to our country?

A7: For small order,express will be best.And for bulk order,sea ship way is best but take much time. For urgent orders,we suggest via air to airport plus our ship partner send to your door.



Q8:Can we get support if we have our own market position?

A8: Please inform us your detailed mind on your market demand,we will discuss and propose helpful suggestion for you,to find the best solution for you.



Q9:Do you have them in stock?

A8: Yes,normal size is available in stock,from 3/4"-4".







Production Flow















Company Information







Foshan Nanhai Hongchang Jufa Electromechanical Valve Co.,Ltd is a factory set up in 2006. We are specializing in  researching, developing and manufacturing different kinds of rotary joints,  flexible metal hose,  rubber hose , bellow expansion joint and valve   equipment in China.







Our factory is covering over 10,000 square meters.  Our R&D department consists of 3 engineers. Also, we have experienced QC personnel  to check all our  products strictly before packaging .  All of our products meet the national standards  and  have pass ISO9001 certification. We obtain trust from customers by advanced technology, excellent quality and satisfactory service. Also, we specialized in customized rotary joints tailored to meet your project requirements.







 Our mission is:  Offering high-quality goods, excellent service, and reasonable price to customers;  Using our product,  you will get  more benefits!









Shipping and Payment













What is our shipping way and payment terms?



Shipping



1. FedEx/DHL/UPS/TNT for samples, Door-to-Door;



2. By Air or by Sea for batch goods, for FCL; Airport/ Port receiving;



3. Customers specifying freight forwarders or negotiable shipping methods!



4. Delivery Time: 3-7 days for samples; 5-25 days for batch goods.





Payment Terms



1. Payment: T/T, Western Union, ,PayPal; 30% deposits; 70% balance before delivery.



2. MOQ: 1pc
